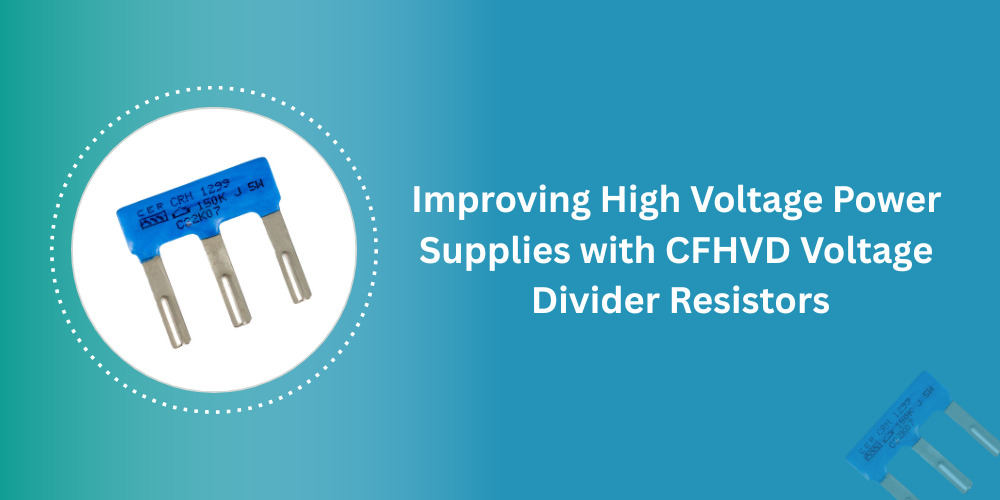

Power of Precision in High Voltage Applications

Imagine the heart of your advanced electronic systems – the high voltage power supply. It’s a critical component, demanding not just power delivery but also unparalleled accuracy and stability. In the intricate world of high voltage applications, from sophisticated medical devices to cutting-edge industrial automation, the ability to precisely measure and divide high voltages is paramount. This isn’t just about functionality; it’s about safety, reliability, and the very integrity of your designs. Engineers, product designers, and purchasing managers alike understand that a robust high-voltage power supply is only as good as the components that comprise it. And when it comes to voltage division in these demanding environments, not all resistors are created equal. We’re talking about situations where even the slightest error can have significant consequences, making the choice of the right voltage divider resistor series absolutely crucial. This is where the innovative CFHVD voltage divider series steps in, offering a solution specifically engineered to meet the rigorous demands of high voltage precision.

The Critical Role of High Voltage Resistor Dividers

In high-voltage circuits, directly measuring or controlling the full voltage can be impractical and hazardous. This is where high-voltage resistor dividers become indispensable. They work by scaling down a high input voltage to a much lower, measurable, and safer output voltage, allowing for accurate monitoring and feedback in control systems.

• Accurate Voltage Scaling: Essential for precise control and measurement in applications like X-ray machines, power grid monitoring, and high-energy physics experiments.
• Enhanced Safety: Reduces dangerous high voltages to levels that can be safely handled by standard measurement equipment and personnel.
• Feedback for Control Systems: Provides crucial data to regulate and stabilise high voltage outputs, ensuring consistent performance.
• Overvoltage Protection: Can act as a protective element, safeguarding sensitive downstream components from damaging voltage spikes.

Why Choose the CFHVD Voltage Divider Series?

The CFHVD voltage divider series stands out as a leading solution for demanding high voltage applications, offering superior performance and reliability compared to conventional alternatives.

• Exceptional Stability: Engineered for long-term stability under high voltage stress, minimising drift and maintaining accuracy over time. This is particularly critical in medical imaging and telecommunications equipment where consistent performance is paramount.
• High Precision: Designed to deliver tight tolerances and low temperature coefficients, ensuring highly accurate voltage division across a wide range of operating conditions.
• Robust Thick Film Technology: Utilising advanced thick film voltage divider technology, CFHVD resistors offer excellent power handling capabilities and resistance to environmental factors, making them ideal for harsh industrial automation and automotive environments.
• Compact Footprint: Despite their high performance, CFHVD dividers are designed with space efficiency in mind, enabling more compact and integrated product designs – a key consideration for electronics and aerospace industries.
• Optimised for High Voltage Applications: Specifically developed to handle the unique challenges of high voltage, including partial discharge and voltage coefficient of resistance, ensuring reliable operation even at extreme potentials.

Applications Benefiting from CFHVD Voltage Dividers

The versatility and robust performance of the CFHVD series make it an ideal choice across a multitude of industries:

• Medical Devices: X-ray power supplies, defibrillators, and diagnostic equipment requiring precise high voltage control for patient safety and accurate readings.
• Industrial Automation: Motor drives, power converters, and control systems where reliable voltage feedback is essential for process efficiency and safety.
• Telecommunications: High-power amplifiers and broadcast equipment where stable voltage regulation is crucial for signal integrity.
• Automotive: Electric vehicle charging systems, ignition systems, and battery management, where high voltage handling and reliability are paramount.
• Aerospace & Defence: Radar systems, power distribution in aircraft, and satellite technology are demanding components that can withstand extreme conditions and deliver unwavering performance.

Conclusion: Elevate Your High Voltage Designs with CFHVD

In the realm of high voltage power supplies, precision, reliability, and safety are non-negotiable. The CFHVD voltage divider series offers a compelling solution, leveraging advanced thick film technology to provide unmatched stability, accuracy, and robust performance in the most demanding environments. For engineers seeking to optimise their circuit designs, purchasing managers prioritising quality and long-term value, and product designers aiming for superior system performance, integrating CFHVD voltage divider resistors is a strategic decision. Elevate your high-voltage applications and ensure the integrity and longevity of your systems. Ready to enhance your high-voltage power supply designs? Contact us today to learn more about the CFHVD voltage divider series and discover how our expert team can help you select the perfect solution for your specific needs.
