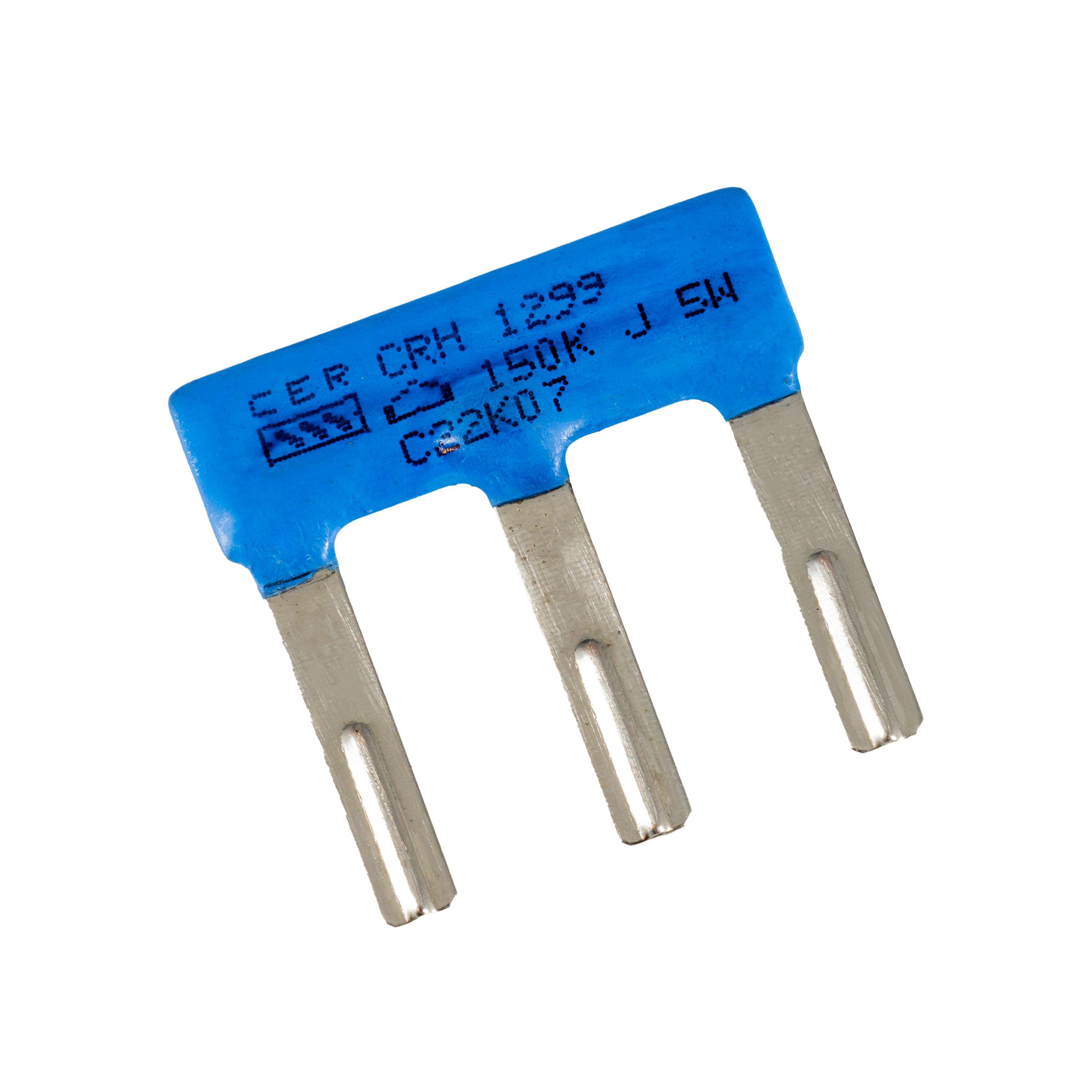

Voltage Divider’s CFHVD Series
₹0.00
Specifications:
- Cermet’s flat type voltage dividers provide stable performance for a wide range of resistance values and ratio values.
- Providing precision thick film voltage multiple taps are provided on the flat type.
- Tight ratio tolerances.
- Consistent Performance
- The applications of Voltage Divider’s CFHVD Series are HV Power supplies, Medical instrumentation, Current pulse limiters, Ionization chambers.
- Material Resistor Element: Thick film on Alumina
- Mechanical Dimension:50mm x 20mm std. size, Special sizes are on request.
- Electrical Ratio Tolerances: 1% to 5%
- Temp. Coefficient Tracking:TCR +/- 50ppm and VCR= +/-30ppm. A complete description of the Divider is required.
- Electrical Resistance Range: 100 Ohms to 5000M
- Power Rating:0.25W to 5.5W
- Voltage Rating:1.5kV to 25kV
- Tolerance:1% to 20%
- Operating Temperature:-55˚C to +110˚C
Description
Achieve precise voltage control in high-performance applications with our flat-type voltage dividers. These compact components feature thick-film resistor elements on an alumina core, delivering stable performance across a wide range of resistance and ratio values. Tight tolerance ratios and low temperature coefficients ensure consistent voltage division for critical circuits in HV power supplies, medical instrumentation, and more.
Material Resistor Element: Thick film on Alumina
Coating: Epoxy
Terminals: RoHS solder composition
Features:
- High Voltage Resistors in thick-film technology Radial leads
- Variable lead spacing by bending
- Climatic protection by Silicone/epoxy coating
- Chip version available (without coating),special versions are also possible.
- Resistance values up to 10 Giga-Ohm
- Low values of TCR and VCR.
