When it comes to measuring electrical current accurately in DC circuits, the Panel Mounted DC Shunt Resistor plays a crucial role. These components are widely used in various industrial and commercial applications to provide precise current sensing and monitoring. In this blog, we will explore the key specifications and features of panel mounted shunt resistors, helping you understand why they are essential and how to choose the right one for your needs. We will also highlight Cermet Resistronics, a trusted manufacturer and supplier known for quality and reliability.

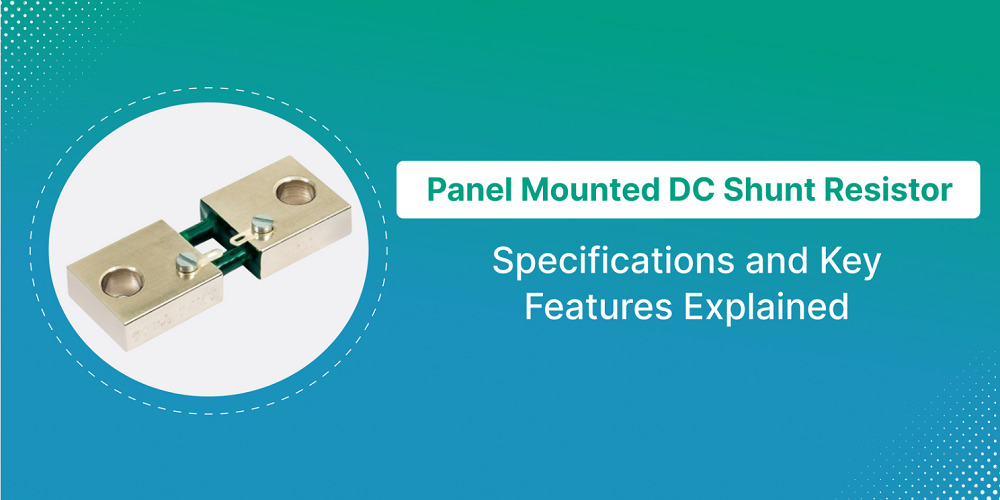

What Is a Panel Mounted DC Shunt Resistor?

A Panel Mounted DC Shunt Resistor is a specialised resistor designed to measure high currents by producing a small, proportional voltage drop. This voltage drop is then used by measuring instruments, such as ammeters or data acquisition systems, to determine the current flowing through a circuit. The resistor is mounted on a panel or control board, making it easy to integrate into electrical systems.

Why Use a Panel Mounted Shunt Resistor?

Panel mounted shunt resistors offer several advantages:

  • Accurate current measurement: They provide a precise voltage drop proportional to the current, enabling accurate readings.
  • High power handling: Designed to handle large currents without overheating.
  • Easy installation: Panel mounting simplifies integration into control panels or switchboards.
  • Durability: Built to withstand harsh industrial environments.

Key Specifications of Panel Mounted DC Shunt Resistors

Understanding the specifications of these resistors is vital to selecting the right product. Here are the main parameters to consider:

1. Resistance Value

The resistance value of a shunt resistor is typically very low, often in the milliohm range (e.g., 0.1 mΩ to 100 mΩ). This low resistance ensures minimal voltage drop and power loss while still allowing accurate current measurement.

2. Power Rating

The power rating indicates how much power the resistor can safely dissipate without damage. Panel mounted shunt resistors usually have power ratings from a few watts up to several hundred watts, depending on the application. Higher power ratings mean the resistor can handle larger currents.

3. Tolerance

Tolerance defines how close the actual resistance is to the labelled value. For precise current measurement, a low tolerance (±0.1% to ±1%) is preferred to ensure accuracy.

4. Temperature Coefficient of Resistance (TCR)

TCR indicates how much the resistance changes with temperature. A low TCR is important to maintain stable readings under varying temperatures. Quality shunt resistors often have TCR values as low as ±10 ppm/°C.

5. Voltage Rating

This is the maximum voltage the resistor can safely withstand. It is essential to ensure the resistor’s voltage rating exceeds the maximum voltage in your circuit.

6. Mounting Style and Size

Panel mounted shunt resistors are designed for easy installation on control panels. The physical size and mounting style should fit your panel layout and space constraints.

Key Features of Panel Mounted DC Shunt Resistors

Beyond specifications, several features make panel mounted shunt resistors reliable and efficient:

Robust Construction

Manufacturers like Cermet Resistronics use high-quality materials such as manganin or cermet alloys, known for their stability and low TCR. The resistors are housed in durable enclosures that protect against mechanical damage, dust, and moisture.

Low Thermal EMF

Thermal electromotive force (EMF) can cause measurement errors. Panel mounted shunt resistors are designed to minimise thermal EMF, ensuring precise voltage output even in fluctuating temperatures.

High Stability and Long Life

These resistors maintain their resistance value over time, even under continuous high current loads. This longevity reduces maintenance and replacement costs.

Easy Wiring and Connection

Panel mounted shunt resistors come with robust terminals or connectors that simplify wiring and ensure secure electrical contact.

Applications of Panel Mounted DC Shunt Resistors

Panel mounted shunt resistors are widely used in:

  • Power supplies and battery chargers: To monitor charging and discharging currents.
  • Industrial automation: For precise current measurement in motor control and process equipment.
  • Renewable energy systems: In solar inverters and wind turbines to measure current flow.
  • Electric vehicles: To monitor battery and motor currents.
  • Test and measurement equipment: For accurate current sensing in laboratories.

Why Choose Cermet Resistronics for Panel Mounted Shunt Resistors?

Cermet Resistronics is a leading manufacturer and supplier of high-quality panel mounted DC shunt resistors. Here’s why they stand out:

  • Quality assurance: Each resistor is manufactured under strict quality control to ensure accuracy and reliability.
  • Custom solutions: They offer customised resistors tailored to specific power ratings, resistance values, and sizes.
  • Expertise: Decades of experience in resistor technology and current sensing applications.
  • Excellent customer support: Providing technical assistance and after-sales service.

Conclusion

A Panel Mounted DC Shunt Resistor is a vital component for accurate current measurement in many electrical systems. By understanding the key specifications such as resistance value, power rating, tolerance, and temperature coefficient, you can select the right resistor for your application. Features like robust construction, low thermal EMF, and easy installation make these resistors reliable and efficient.

For high-quality, precision panel mounted shunt resistors, Cermet Resistronics is a trusted name, offering products that meet demanding industrial standards. Whether you need standard or custom solutions, their expertise ensures you get the best resistor for your electrical measurement needs.If you want to learn more about panel mounted DC shunt resistors or need assistance selecting the right product, feel free to contact Cermet Resistronics today!
