Efficient braking systems are the backbone of safety in heavy-duty crane and hoist operations. This blog explores how high-performance resistor technologies manage kinetic energy during deceleration, preventing equipment wear and ensuring operational stability. By integrating specific components like grid units and encased models, industrial setups can achieve better thermal management and reliable motor control.

To ensure crane safety and prevent motor damage, dynamic braking resistors dissipate excess energy as heat when the motor acts as a generator during load lowering or deceleration. This process protects the mechanical brakes and maintains precise speed control under heavy loads.

Heavy-duty lifting equipment operates under extreme conditions where precision and safety are non-negotiable. When a crane lowers a heavy load or stops suddenly, the motor generates a significant amount of electrical energy. Without a proper system to handle this energy, the drive system could face overvoltage trips or mechanical failure. This is where specialized resistors come into play, serving as the primary method for energy dissipation.

For engineers and facility managers, choosing the right component is about more than just matching resistance values; it is about durability, environmental protection, and heat handling capabilities.

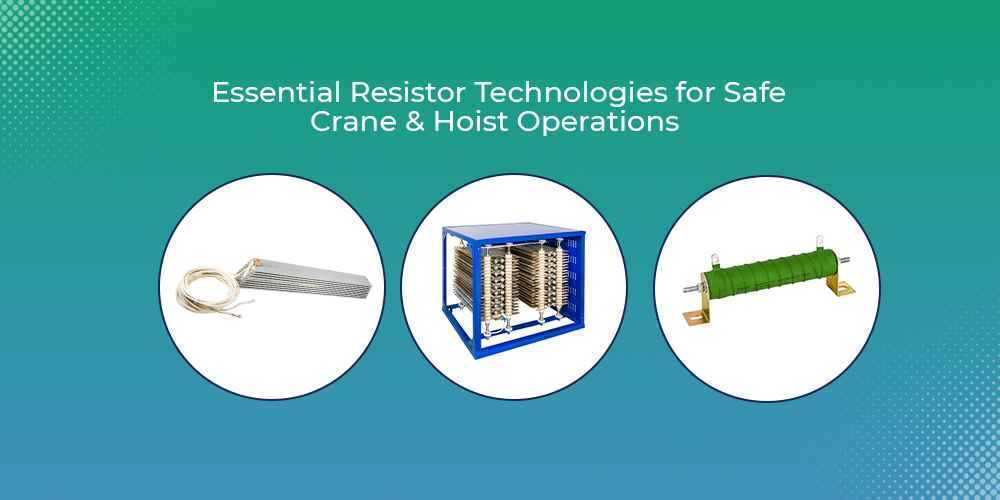

The Role of Aluminium Encased Dynamic Braking Resistors

In environments where space is limited but protection is a priority, Aluminium Encased Dynamic Braking Resistors are often the preferred choice. These units are designed with a rugged outer shell that acts as an efficient heat sink. The aluminium housing provides excellent thermal conductivity, allowing the internal resistive element to cool down rapidly during repetitive braking cycles.

These resistors are particularly useful in smaller hoist units or trolley drives where they might be exposed to dust or moisture. The encasement provides an IP-rated protection level that keeps the internal components safe from external contaminants.

Key Specifications:

• Power Rating: Available from 60W to 5000W, depending on the frame size.
• Resistance Range: 1 Ohm to 10K Ohm.
• Tolerance: Standard ±5% or ±10%.
• Temperature Coefficient: 200 ppm/°C.
• Insulation Resistance: Greater than 20M Ohms at 500V DC.

Using aluminium-encased dynamic braking resistors ensures that the heat generated during the braking process does not affect nearby sensitive electronics, as the housing manages the thermal spread effectively.

Managing Heavy Loads with Dynamic Braking Punched Grid Resistor

For large-scale industrial cranes, such as those used in shipyards or steel mills, the energy levels are much higher. In these scenarios, a Dynamic Braking Punched Grid Resistor is the industry standard. Unlike wire-wound options, these are made from punched stainless steel or alloy sheets, which allows for massive power handling and high current capacity.

The design of a Dynamic Braking Punched Grid Resistor facilitates natural air convection. The grids are stacked with ceramic insulators, creating a robust structure that can withstand the intense vibrations common in crane operations. Because they are made from high-grade alloys, they maintain stability even when glowing red-hot during emergency stops.

Key Specifications:

• Current Capacity: Up to 500 Amps or more in parallel configurations.
• Material: High-quality Stainless Steel or FeCrAl alloy for oxidation resistance.
• Design: Modular stacks for easy expansion of power capacity.
• Temperature Rise: Designed to operate safely at 375°C above ambient.

The reliability of a Dynamic Braking Punched Grid Resistor makes it indispensable for EOT (Electric Overhead Traveling) cranes that perform continuous duty cycles throughout the day.

Stability and Precision: Wire Wound Resistors (CSFR-Series)

When the application requires a balance between precision and ruggedness, Wire Wound Resistors (CSFR-Series) offer a dependable solution. These are typically used in control circuits or as part of a larger braking bank, where stable resistance values are required over extended periods. The CSFR-Series is known for its high pulse-handling capability, which is vital for the intermittent “on-off” nature of crane braking.

The construction involves winding a high-grade resistive wire onto a ceramic core, which is then coated with a flameproof silicone or vitreous enamel. Wire Wound Resistors (CSFR-Series) are built to handle the mechanical stresses of industrial environments while maintaining their electrical integrity.

Key Specifications:

• Coating: Flameproof silicone or high-temperature cement.
• Core: High-grade Steatite or Alumina ceramic.
• Overload: Capable of handling 10 times the rated power for 5 seconds.
• Terminal Type: Radial or leaded for secure electrical connections.

Integrating Wire Wound Resistors (CSFR-Series) into the hoist control logic helps in fine-tuning the deceleration ramps, providing the operator with better “inching” control when positioning heavy loads.

Why Thermal Management Matters in Hoisting

The efficiency of any crane system is tied to how well it manages heat. If the resistors fail to dissipate energy quickly enough, the braking torque decreases, leading to safety risks. Using high-quality Aluminium Encased Dynamic Braking Resistors helps in smaller setups, while the Dynamic Braking Punched Grid Resistor takes over for heavy-duty requirements.

By selecting the correct combination of these components, companies can extend the life of their mechanical brakes. When the electrical system handles 90% of the braking force through the resistors, the mechanical pads are only used to hold the load at a standstill. This reduces maintenance costs and downtime significantly.

Furthermore, the inclusion of Wire Wound Resistors (CSFR-Series) ensures that the control signals remain accurate, preventing erratic motor behavior during speed changes.

Selecting the Right Component for Your Crane

Every hoisting application has unique demands based on the weight of the load, the frequency of lifts, and the environment. For outdoor cranes exposed to the elements, the protection offered by Aluminium Encased Dynamic Braking Resistors is vital. For heavy foundry cranes where heat is already an issue, the open-air design of a Dynamic Braking Punched Grid Resistor is more appropriate.

Properly sizing these resistors involves calculating the peak braking power and the duty cycle. High-quality resistors ensure that even during a power failure, the regenerated energy can be managed safely to bring the load to a controlled stop.

Frequently Asked Questions

1. Why is a dynamic braking resistor necessary for a crane?

When a crane motor slows down or lowers a load, it generates electricity that flows back into the drive. If this energy is not dissipated by a resistor, it can cause the drive to trip or damage the motor.

2. What is the difference between a grid resistor and an encased resistor?

A Dynamic Braking Punched Grid Resistor is designed for very high power and high current in heavy-duty cranes, whereas Aluminium Encased Dynamic Braking Resistors are compact and protected, making them ideal for smaller or medium-duty hoists.

3. How do I know if my Wire Wound Resistors (CSFR-Series) need replacement?

Signs of failure include visible cracks in the coating, discoloration from excessive heat, or an “open circuit” reading when testing with a multimeter. Regular inspection helps prevent unexpected crane downtime.
