High-Performance Industrial Circuitry: The Engineering Behind Cylindrical Thick Film Resistors

Selecting dependable electronic components requires balancing structural integrity, thermal limits, and environmental variables. Engineering teams frequently consult leading manufacturers of cylindrical thick-film resistors to find components capable of withstanding intense power surges and high operating voltages. The underlying architecture of these components dictates how effectively they manage electrical stress in high-voltage infrastructure, industrial motor controllers, and heavy power grids.

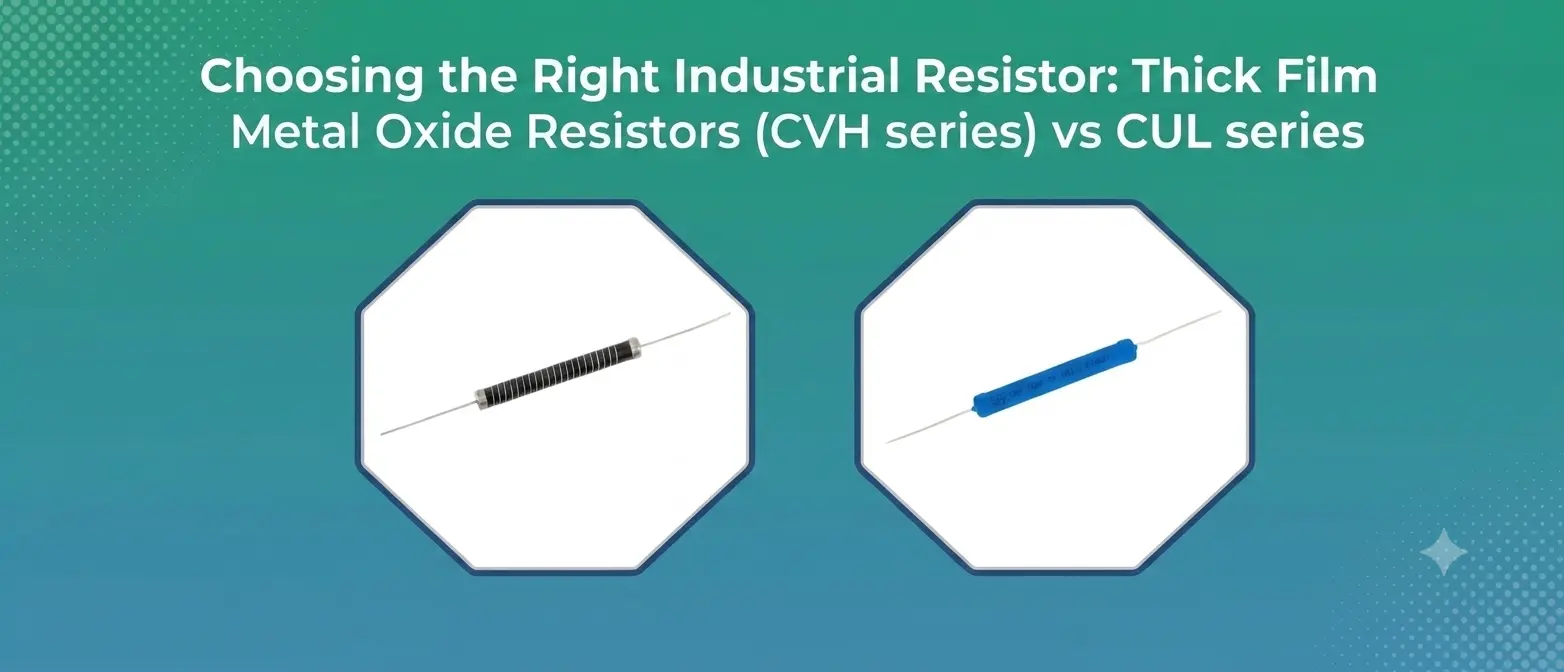

To clarify the core engineering differences between the primary product architectures, the following overview compares two major industrial series used in power systems today.

Understanding these baseline structural differences allows design teams to match the correct resistor line to their specific electrical environments. Both options utilize indigenous technology designed to replace brittle alternatives in demanding layouts.

Exploring Thick Film Metal Oxide Resistors (CVH series)

When industrial circuits face extreme voltage spikes, the Thick Film Metal Oxide Resistors (CVH series) serve as a primary defensive component. These resistors are engineered specifically to process very high ohmic values up to 200 Giga ohms without experiencing early breakdown or thermal runaway. Top cylindrical thick-film resistor manufacturers apply a highly insulating epoxy paint coating to the outer surface to keep internal currents isolated. This protective barrier allows the component to maintain excellent stability at 2% even under intense operating conditions.

The primary benefit of the CVH lineup rests in its high-voltage handling capacity. It provides high voltage withstanding up to 25 kV and can handle a peak high surge withstanding up to 50 kV. This massive threshold ensures that power supplies, high-frequency transmitters, and test equipment remain safe from destructive transient spikes.

The Role of Thick Film Metal Oxide Resistors- Unlacquered (CUL series)

For environments where internal components are completely immersed in protective fluids, standard paints or lacquers fail. The Thick Film Metal oxide resistors- Unlacquered (CUL series) address this specific problem by removing the standard outer paint coating entirely. Built on an incredibly stable glass base, the CUL series employs a highly reliable glass-based thick metal oxide film that remains exposed to its surroundings without breaking down. Because there are no lacquers to dissolve or peel, there is absolutely no reaction or contamination with capacitor oil inside sealed industrial systems.

This chemical neutrality makes the unlacquered CUL line the preferred choice for the discharge of power capacitors. The scratch-proof film ensures high stability over thousands of charge and discharge cycles, while a wide resistance range offers the flexibility needed for various power filtering configurations.

Key Industrial Applications for Cylindrical Resistors

Experienced cylindrical thick film resistor manufacturers engineer these passive components to handle complex energy management tasks across multiple sectors:

• Discharging of power capacitors: The unlacquered CUL series drains stored energy from large capacitor banks safely, preventing dangerous residual voltages without contaminating the surrounding dielectric fluids.
• High-voltage power distribution: The CVH series absorbs massive inductive surges in substation monitoring tools and industrial power grids.
• Motor drives and traction control: These units manage energy dissipation in heavy industrial systems, crane hoists, and electric vehicle pre-charge circuits.

By focusing on materials that survive extreme electrical stresses, these specialized thick film products deliver long-term reliability where standard commercial resistors would fail under load.
